Scott Transformer
Overview
Scott transformer is a three-phase to two-phase transformer, the structural capacity of the low-voltage winding is the same as two ordinary single-phase transformers of the same capacity.
Usage
This product is suitable for two single-phase loads.
Structural Features
Scott's connected transformer is usually composed of two single-phase transformers. The end of the high voltage winding of one transformer is connected to the center of the other high voltage winding to form a three-phase high voltage winding of the T” Each low voltage winding is a simple single phase winding with no electrical connection between them. Their voltage and current are the same as for a normal single-phase transformer. But each high voltage winding and current is different from a normal single phase transformer.

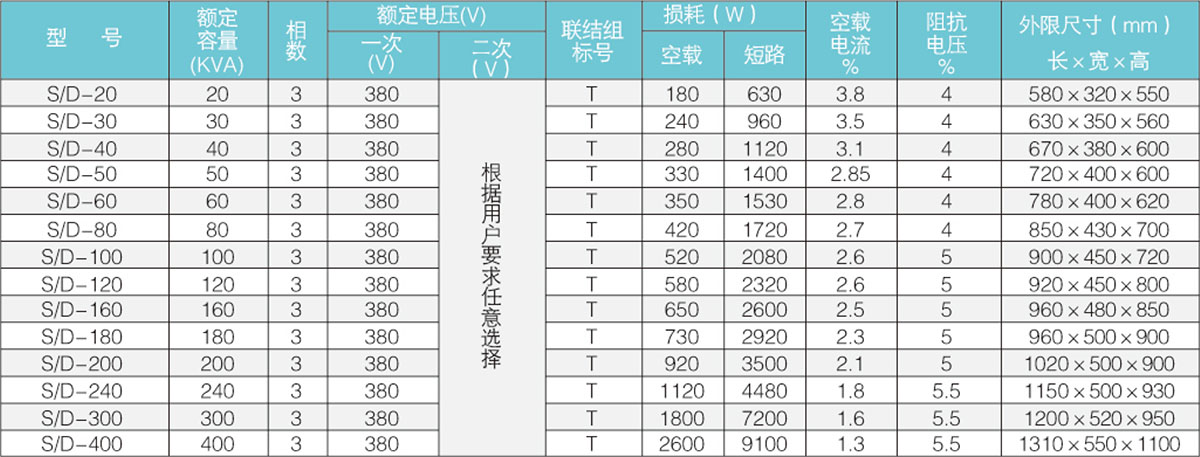

Technical parameters
