Overview
This product is designed for our silicon carbon rod electric furnace, suitable for power isolation.
Usage
This product is exclusively used for the power supply of silicon carbon rod furnace (glass float tin bath).
Structural Features
During the use of silicon carbon rod heating body, the resistance value increases with time, this phenomenon is called aging, the aging of the rod should be regarded as normal phenomenon, after the aging of the rod The furnace temperature is lowered. In order to work normally and improve the service life of the silicon carbon rod, the output voltage of the transformer is adjusted to meet the working voltage of the silicon carbon rod, and the adjustment range can be 2-3 times.

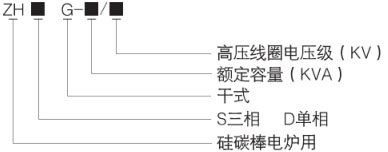

Model Meaning

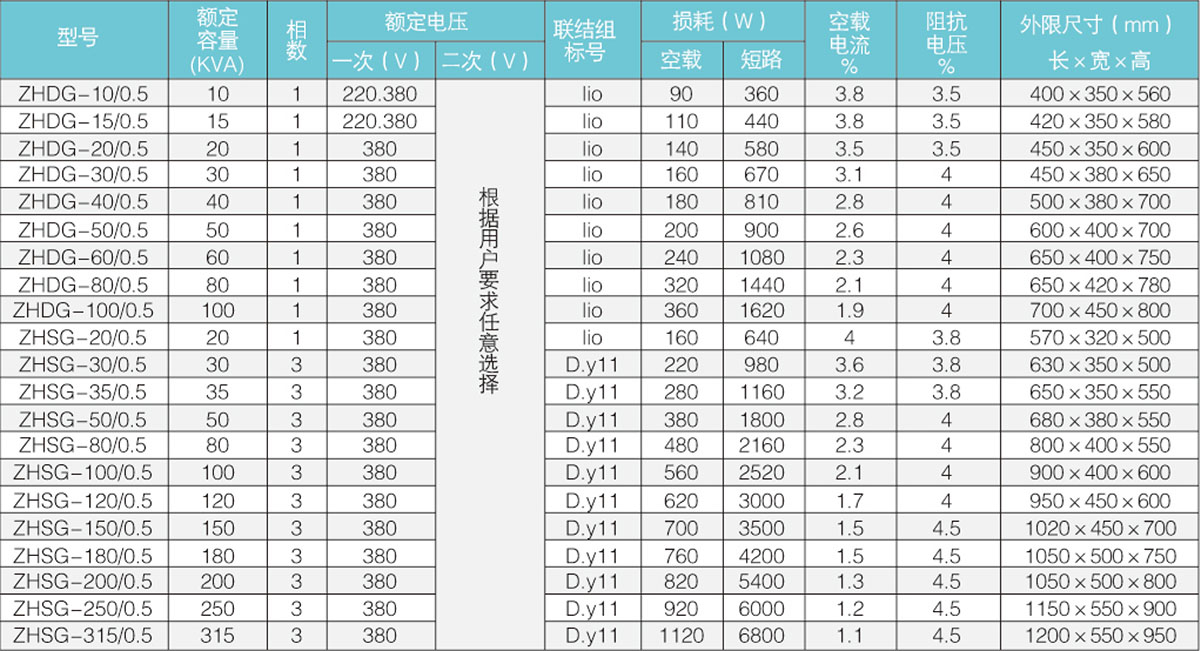

Technical parameters
